What is subnet mask and default Gateway

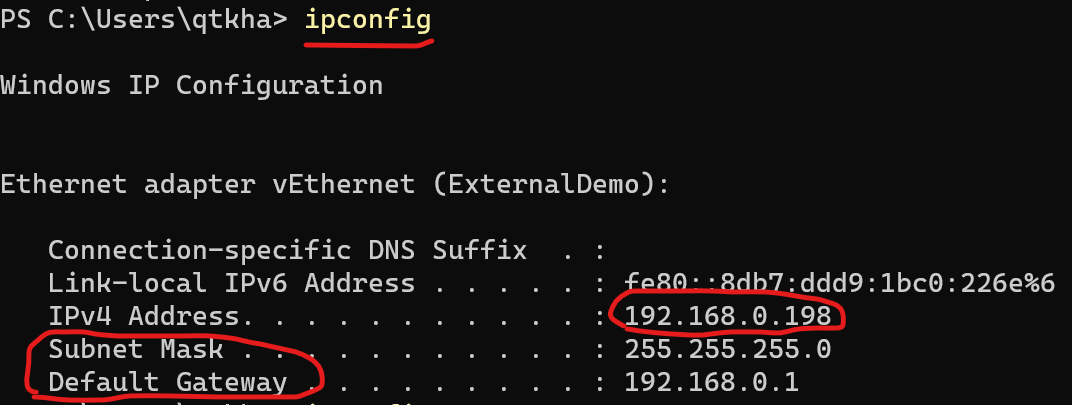

  • Screen shot Preview

  • Networking core concepts

    • Two systems which are in same network can communicate with each other
    • Router can help in transferring network packets from one network to other
  • Two Systems connected in same network can communicate with each other

    • Image Preview
    • But how does system A know that System B in same network?
      • Ip Address => Network id + host
      • Lets look at some samples

Identifying network id and host id

  • Just by ip address we can make out what is network id and what is host id. We need subnet mask for that
  • Example 1:
ip:  192.168.100.102
sm:  255.255.255.0
nid: 192.168.100
hid: 102
  • Example 2:
ip: 10.10.4.5
sm: 255.255.0.0
nid: 10.10
hid: 4.5
  • Two machines will know they can communicate with each other if they have same network id

Need for default gateway

  • Typical home network connection Preview
  • Ping from home to google works because of default gateway (Wifi Router) forwards the packet to next connected network Preview Preview

Creating Network

  • Networks are of two types
    • Public Network:
      • Any one from internet can access your network
    • Private Network
      • This network will be private
      • This network can connect to internet
  • In Azure We create private networks. Exposing your servers to public internet will be handled by Azure, you have to just inform.
  • When we create a network => we need to specify the range of ip addrresses available for the network. This range is often chosed depending on number of systems to be connected to network.
Scenario 1:
  • QT has on office where there are
    • Dev Workplace: This needs 250 connections
    • Lab Workplace: This needs 250 connections
  • We are asked to create a private network for this Preview
Scenario 2:
  • QT has an office building with 4 floors. Each floor has two work areas capable of connecting 250 devices
  • We are asked to create private network for this Preview
