DevOps Classroom Series – 21/Mar/2021

Influence of the OCI on Docker

  • Image representing the influence Preview

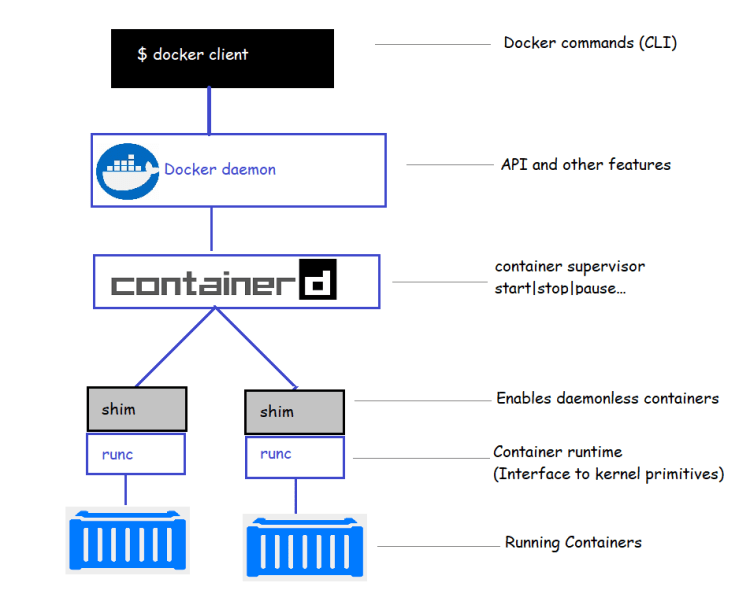

  • When we start a new container what happens?
docker container run httpd:latest
  • When we type this command into the Docker CLI, the client converts the command into appropriate API and POSTs them to the API endpoint exposed by Docker daemon
    • In the Linux machine by default the is exposed on local socket /var/run/docker.sock and in Windows machine this API is exposed \pipe\docker_engine
  • Once the daemon recieves the command to create a new container, it makes a call to containerd. Daemon communicates to containerd via CRUD-style API over gRPC
  • Containerd converts the required Docker image into an OCI bundle and tells runc to create a container
  • runc interfaces with the OS kernel to pull together all the constructs necessary to create containers and the container process is started as the child-process of runc and as soon as container is started runc will exit.
  • Shim is integral part of the implementation of daemonless containers.
  • In the old mode where all the container run time was implemented in daemon , starting or stopping the daemon would kill all the running containers. Especially when new version of Docker has to be upgraded on the Production Servers the containers will be killed which leads to downtime
  • It is mentioned above that containerd uses runc to create new containers. In reality, it forks a new instance of runc for every container it creates.
  • Once the container is create the parent runc process exits
  • Once a container parent process exits, the associated containerd-shim becomes the parent of the container.
  • The responsibility of shim include
    • keeping any stdin and stdout streams open so that when the daemon is restarted the container doesn’t terminated
    • Reporting the container exit status back to the daemon

Docker Images

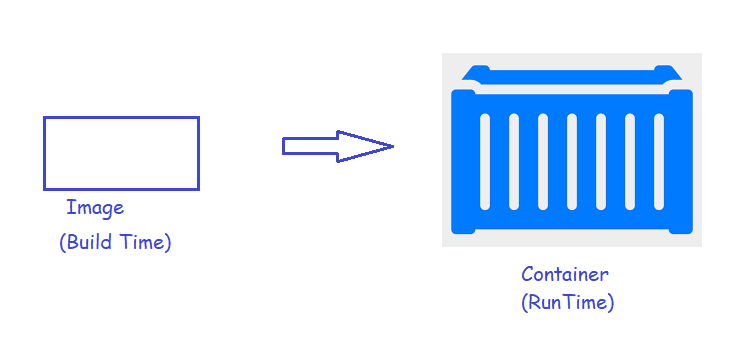

  • To create docker containers we need docker images. Images are considered build-time constructs and containers are run-time constructs Preview
  • Create a new docker play ground instance
  • Docker host will have a local image repository which is usually located
    • Linux => /var/lib/docker/<storage-driver>
    • windows => c:\programdata\docker\windowsfilter

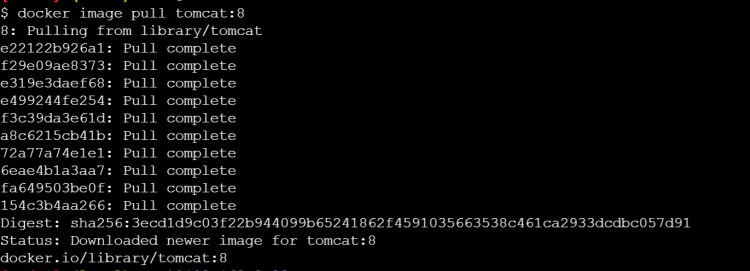

  • The process of getting images into the local image repository is called pulling. so lets try to pull the tomcat:8 image
docker image pull tomcat:8

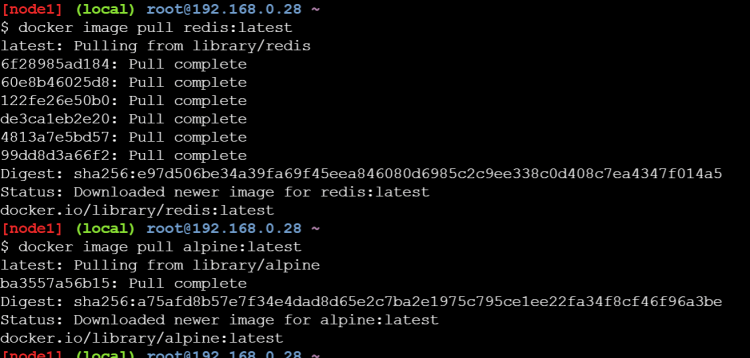

docker image pull redis:latest
docker image pull alpine:latest

Preview Preview Preview

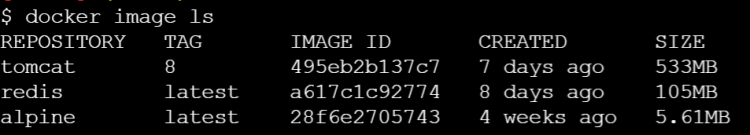

  • Lets get the list of the docker images
docker image ls

Preview

  • By default docker images are pulled from the default registry which is docker hub.
  • Image registries:
    • We store docker images in a centralised locations referred as image registry. The purpose is to share and access docker images
    • The most common registry is docker hub (https://hub.docker.com)
    • There are other registries
      • Elastic Container Registry (ECR)
      • Azure Container Registry (ACR)
      • Jfrog docker registry Refer Here
      • Google container Registry
    • Execute docker info Preview

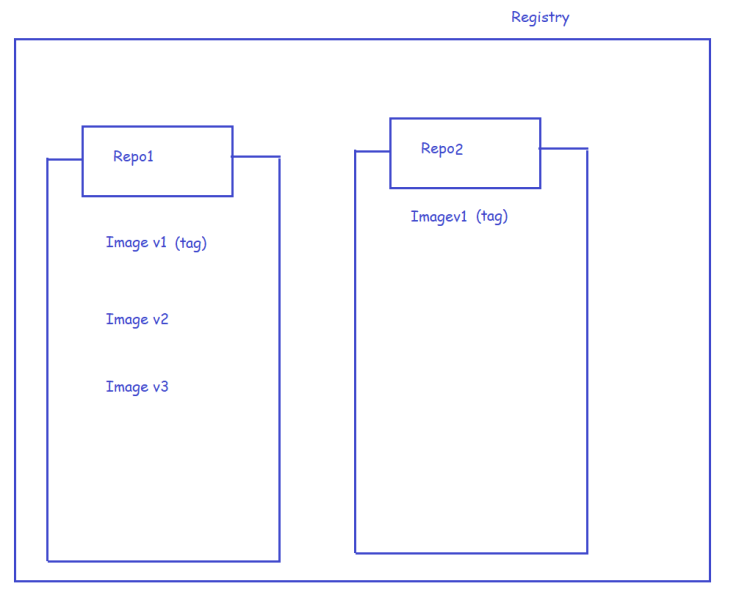

    • Image registries contain one or more image repositories. Repositories will container one or more images of the same application with different tags Preview
  • Image naming and tagging
    • docker images are generally available in the following format <repository>:<tag>

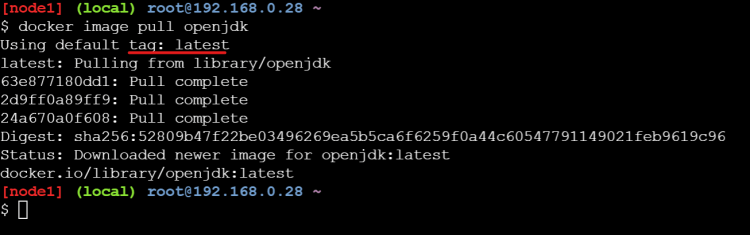

    • when you don’t specify tag docker assumes latest as a tag Preview Preview

Dockerfile

  • A Dockerfile is a text file which contains instructions on how to create a Docker image.
  • Dockerfile consists of instructions in the following format
DIRECTIVE/INSTRUCTION argument
  • In Dockerfile any line which starts with # is a comment
  • FROM instruction/directive is used to choose the base image
FROM <image>:<tag>
  • If you want to build a docker image from scratch
FROM scratch
  • LABEL: The Label is the key value pair to add metadata to the Docker Image
LABEL <key>=<value>
LABEL maintainer=khaja@qt.com
LABEL version=1.0
LABEL maintainer=khaja@qt.com version=1.0
  • Now lets apply LABEL’s and comments to the Dockerfile which we have used to build the spring pet clinic

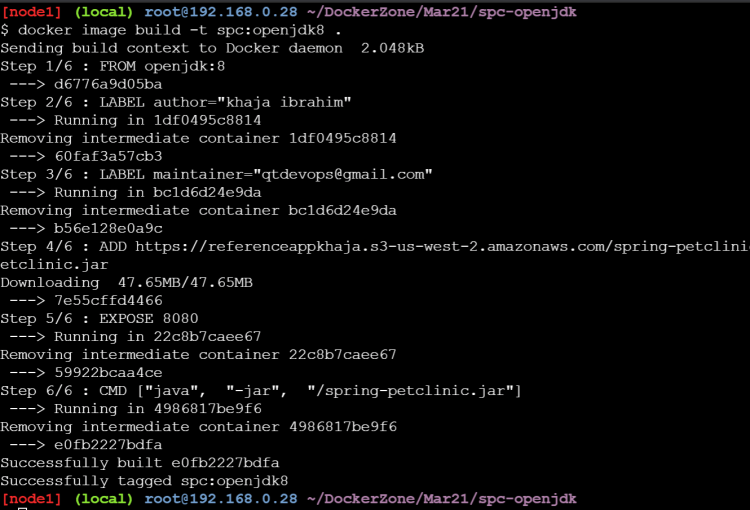

  • Refer Here for the changes added Preview Preview

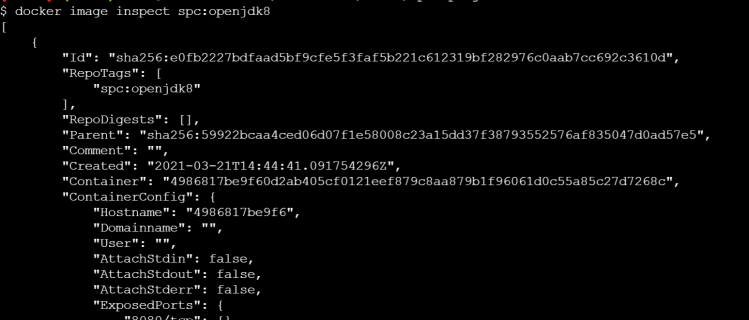

  • Lets try to inspect the image which we have built Preview Preview

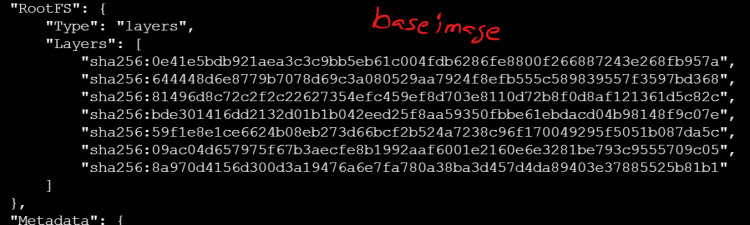

  • Lets inspect the image which we have built to find a section called as layers and also its base image Preview Preview
  • If we examine the result is in the spc we have one extra layer Preview
  • Docker image is collection of layers Preview

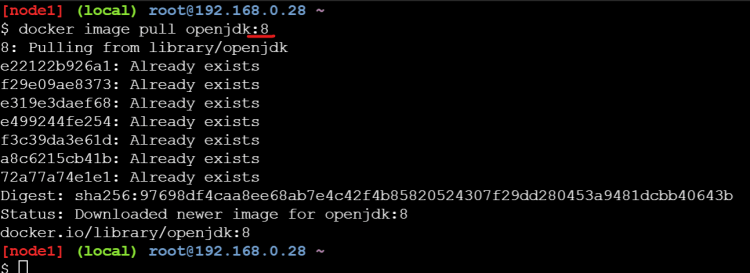

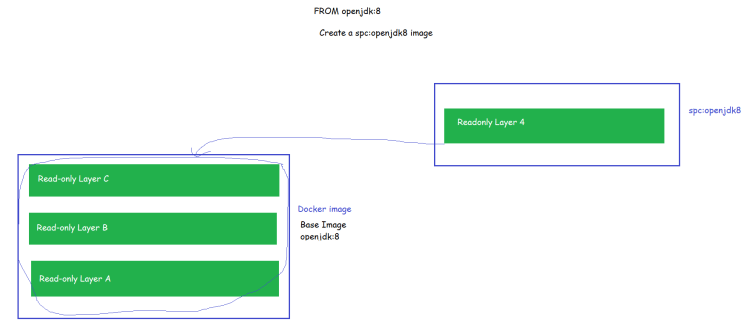

  • When we create a docker image from some base image the layers are reused Preview Preview
  • The layers are created while building the image if there are any changes done on the filesystem. The instruction which might lead to additional image layer creations are ADD, COPY and RUN
  • Now lets experiment with the RUN instruction. The docker file which will be used is
FROM ubuntu:latest
RUN apt update
  • First lets pull ubuntu:latest image and the inspect the layers
docker image pull ubuntu:latest
docker image inspect ubuntu:latest

Preview

  • we have 3 image layers Preview
  • Now lets create our Dockerfile and build a image called as layerdemo Preview
  • Now lets inspect for image layers Preview
  • One additional layer is created as a result of apt update
  • These layers are read-only no container or no image can make changes in the layers
