AWS Classroom Series – 05/Mar/2021

AWS Elastic Bean Stalk

  • In the IAAS deployment we create an ec2 instance, install the necessary configuration and then deploy the appplication Preview

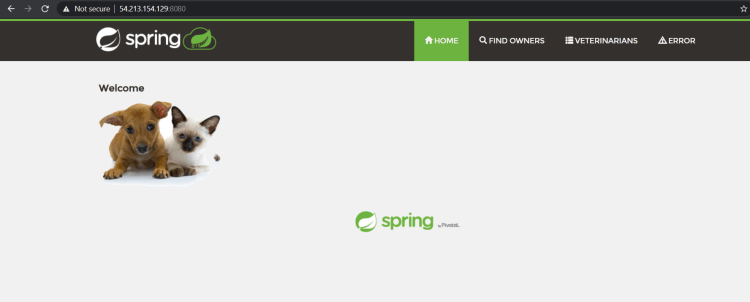

  • Lets create an ec2 instance to deploy some java based application and deploy the spring pet clinic Preview
  • In the case of AWS Lambda, we configure a small functionality and configure trigger and destination
    • trigger will cause the function to be invoked (events and API Gateway)
    • When the lambda function is executed it has two states, one is success and other is failure, we can configure destinations for success and failure
    • Destinations will be other lambda functions or an SNS topic (which can help in sending email, sms etc) or event bridge or SQS
  • AWS has a service called as Elastic Beanstalk that helps you deploy and manage applications without having to learn about infrastructure
  • Elastic Beanstalk supports applications developed in
    • Go
    • Java
    • .NET
    • Node js
    • PHP
    • Python
    • Ruby

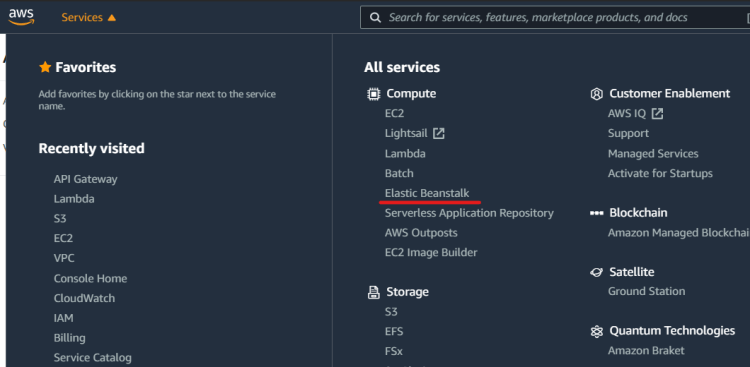

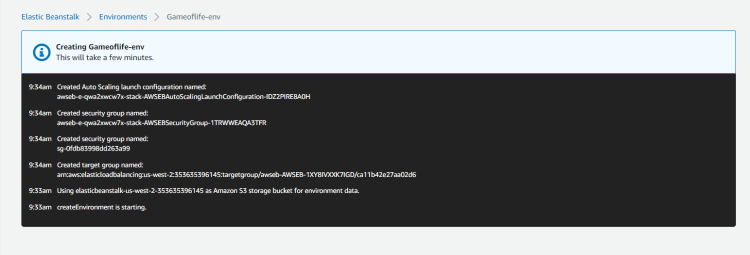

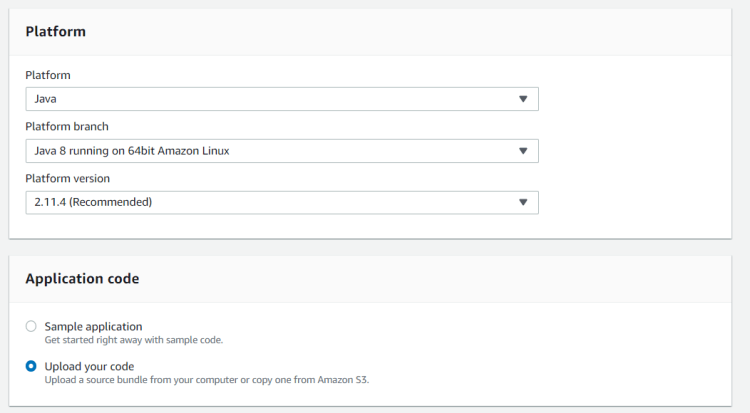

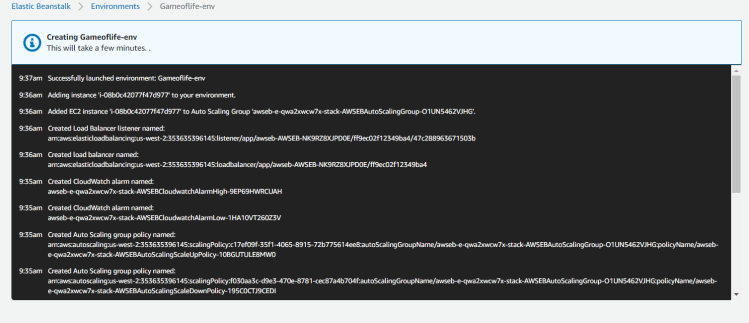

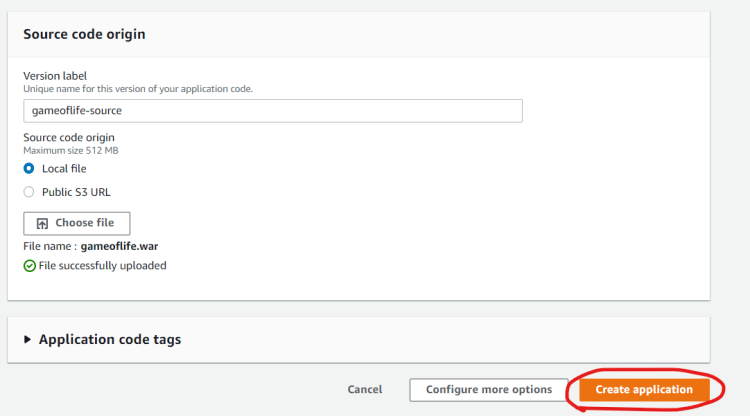

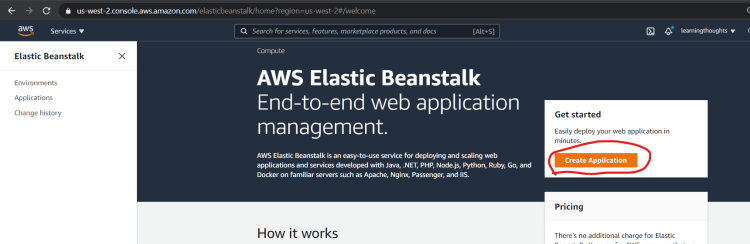

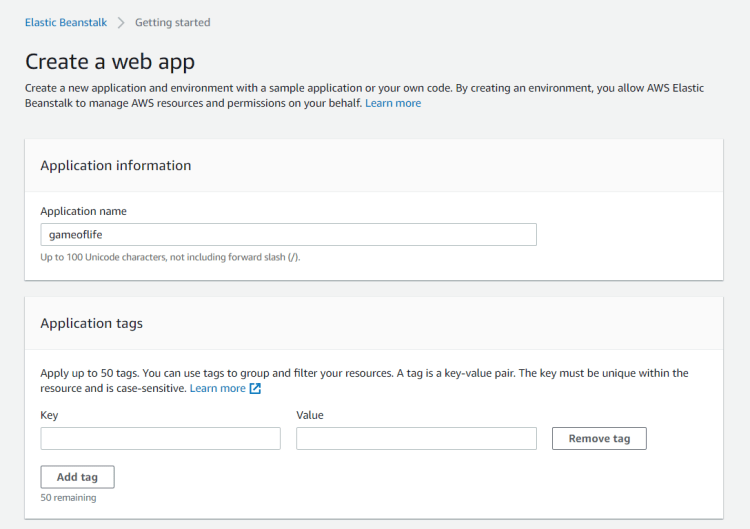

  • Lets deploy a sample elastic beanstalk application Preview Preview Preview Preview Preview Preview Preview Preview
  • In this approach we are uploading code/binaries then aws is creating the necessary environments for our application to work
  • Elastic Beanstalk internally creates the infrastructure necessary to run the application
    • Network components
      • Loadbalancers
      • Security groups
    • EC2 instances
    • Monitoring infrastructure
      • Cloud watch alarms
  • As the user of Elastic Beanstalk , we deal with
    • Application
    • Environment
  • So In Elastic Beanstalk we need to learn how to manage applications and configure environments and integrate with other AWS Services
    • In Environments we have two environments webserver and worker
    • We need to understand Platforms
    • Elastic Beanstalk CLI

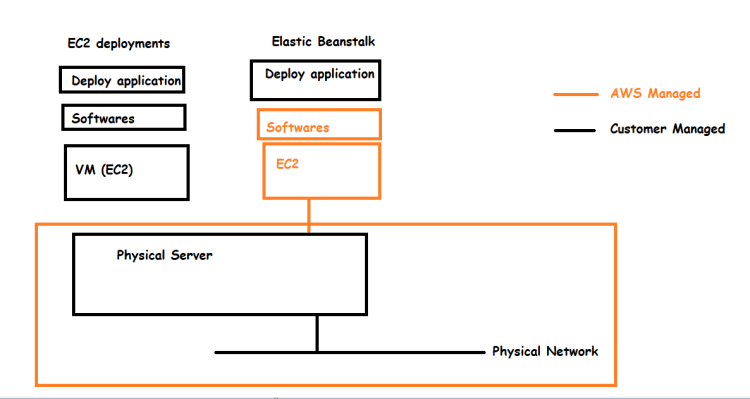

  • Elastic Beanstalk is a PAAS (Platform as a Service) offering from AWS Preview
