DevOps Classroom Series – 22/Aug/2021

Docker Internals

  • Questions to understand
    • How are container isolations created?
      • Network
      • Process tree
      • FileSystem
    • How are cpu and memory resources allocated to this isolation
  • For more content on containers
  • In linux we have a kernel feature called as Namespaces that can be used to create isolations.
  • To apply resource limits to this isolation we have one more kernel feature which is called cgroups (Control groups)

Lets try to run some java application inside container

  • Manual Steps:
    • Creating a ubuntu vm
    • installing java
    • downloading the application(jar file)
    • running the command to start the applciation
    • Access the application by using http url
  • Commands
sudo apt update
sudo apt install openjdk-11-jdk -y
wget https://referenceapplicationskhaja.s3.us-west-2.amazonaws.com/spring-petclinic-2.4.2.jar
java -jar spring-petclinic-2.4.2.jar
  • Now access the application from http usign http://<public-ip&gt;:8080

  • Lets see if we can do the same in containers

  • Now access the machine where docker is installed.

  • Option 1:

    • Try to search for a docker container with ubuntu image
    docker container run --name exp1 -p 8000:8080 -it ubuntu /bin/bash
    apt update
    apt install openjdk-11-jdk wget -y
    wget https://referenceapplicationskhaja.s3.us-west-2.amazonaws.com/spring-petclinic-2.4.2.jar
    java -jar spring-petclinic-2.4.2.jar

    • When we the run the above commands the application runs inside the contaiener are we are able to access the application using http://<host-ip&gt;:8000
  • Option 2:

    • Searching for openjdk image has resulted in openjdk:11
    docker container run --name exp2 -p 8001:8080 -it openjdk:11 /bin/bash
    curl https://referenceapplicationskhaja.s3.us-west-2.amazonaws.com/spring-petclinic-2.4.2.jar --output spring-petclinic.jar
    java -jar spring-petclinic.jar

    • When we the run the above commands the application runs inside the contaiener are we are able to access the application using http://<host-ip&gt;:8001
  • Observations: When we want to run our application inside the container

    • manually executing commands as shown above is not a sensible idea
    • When we are creating images choosing a base container with necessary softwares installed (option 2) will be sensible.
  • In Docker if you want to create images we create Dockerfile, which has instructions on how to build the container image and command to be executed when container is execute

  • Create a file in a new folder called as Dockerfile and add the below contents

FROM openjdk:11
ADD https://referenceapplicationskhaja.s3.us-west-2.amazonaws.com/spring-petclinic-2.4.2.jar /spring-petclinic.jar
EXPOSE 8080
CMD ["java", "-jar", "/spring-petclinic.jar"]

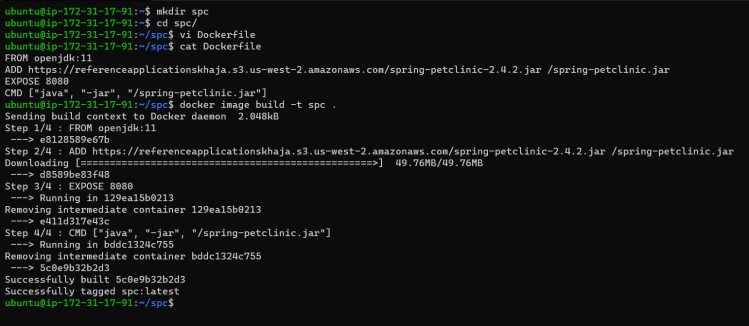

  • Now lets try to build the image using docker image build -t spc . Preview

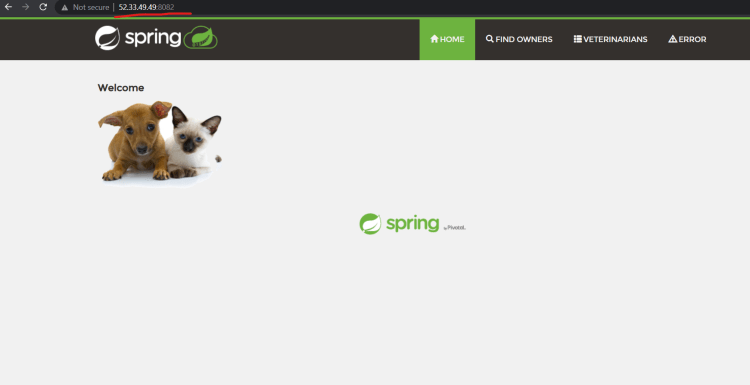

  • Now create the container
docker container run -d --name exp3 -p 8082:8080 spc
docker container run -d --name exp4 -p 8083:8080 spc

Preview Preview
