Lets Realize the n-tier architecture

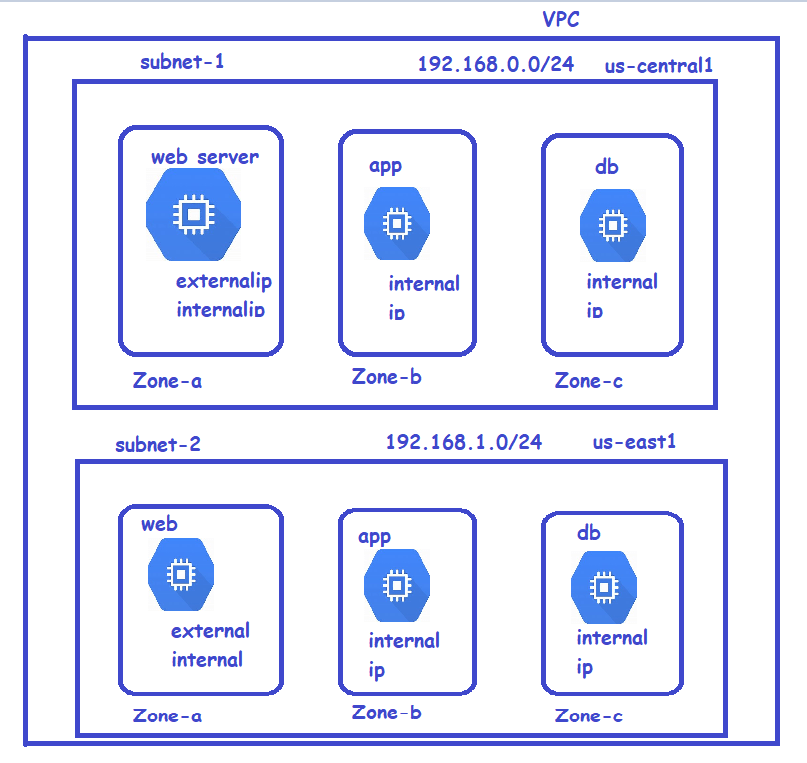

  • Architecture: Preview
  • Lets create a vpc Refer Here
  • The command would be
gcloud compute networks create 'ntier' --description 'ntier basic architecture' --subnet-mode='custom'
# Create subnet-1
gcloud compute networks subnets create 'subnet-1' --network='ntier' --range='192.168.0.0/24' --description 'ntier in central us' --region='us-central1'

# Create subnet-2
gcloud compute networks subnets create 'subnet-2' --network='ntier' --range='192.168.1.0/24' --description 'ntier in east us' --region='us-east1'
  • Lets create a firewall rule to open port 22 and 80 from any where for instances with network tag ‘web’. Refer Here for the firewall rules create reference
  • And also other firewall rules
# Create a firewall rule to open 22,80 ports from any where to vm instances with tag 'web'
gcloud compute firewall-rules create 'web-firewall' --network='ntier' --source-ranges='0.0.0.0/0' --direction='INGRESS' --action='ALLOW' --rules='tcp:22,tcp:80' --target-tags='web' --priority='2000'

# Create a firewall rule to allow to open 22, 8080 ports from tag web to tag app
gcloud compute firewall-rules create 'app-firewall' --network='ntier' --direction='INGRESS' --action='ALLOW' --rules='tcp:22,tcp:8080' --source-tags='web' --target-tags='app' --priority='2000'

# Create a firewall rule to allow to open 22, 3306 ports from tag app to tag db
gcloud compute firewall-rules create 'db-firewall' --network='ntier'  --direction='INGRESS' --action='ALLOW' --rules='tcp:22,tcp:3306' --source-tags='app' --target-tags='db' --priority='2000'
  • Creating linux vms in the subnets do manually using console
  • Refer Here for the changeset
