Azure Classroom Series – 05/Jan/2021

Databases in Application Architecture

• Scenario-1: Point of Sale System

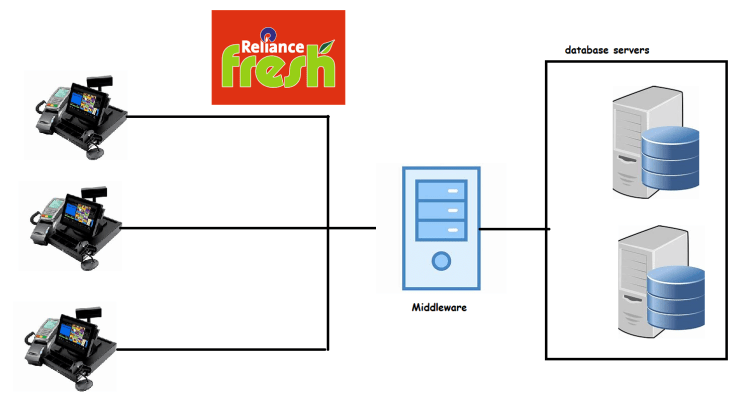

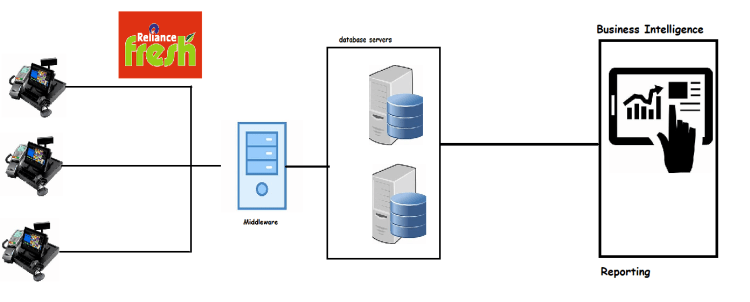

  • Basic architecture
  • Now BI (Business Intelligence System) will be querying the databases for analytics and reporting to make business decisions

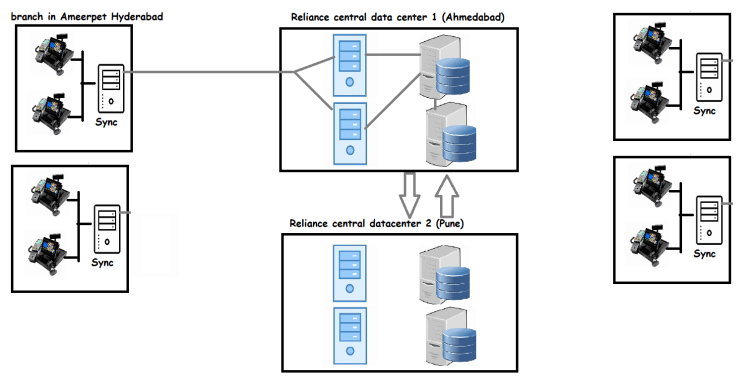

  • The deployment of reliance fresh is done in the following fashion
  • Reliance has 2 physical data centers in Ahmedabad and pune
  • How do engineers setup middleware and sql in those datacenters?
    • Engineers will take physical/virtual machine (Middle ware)
    • install necessary operating system
    • install middleware software packages on the system
    • configure middleware
    • Need to do the same on the other middle ware systems
    • For Database, Engineers will take physical/virtual machine
    • install necessary os
    • install the sql database engine (SQL Server, mySQL, Postgres, Oracle)
    • Import the necessary data
    • Configure Replication settings to the other database engines

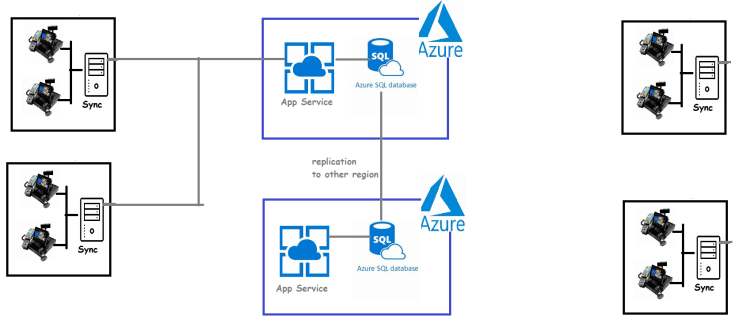

  • How does moving to Azure Help Reliance fresh?
    • Two Regions will be chosen for running server side components
    • Database:
      • Azure supports creating SQL Server, mySQL, Postgres directly as a service
      • so the only thing which engineers need to do is
        • configure replication (only telling in which region they want the replication to happen)
        • import the data
      • Middle ware:
        • Azure provides options of creating middleware by
          • choosing a vm
          • directly deploying middle ware application

• Note:

  • Create Azure Free account Refer Here
  • Create a simple virtual machine Refer Here
  • Setting up and using windows terminal Refer Here
  • Install necessary softwares Refer Here

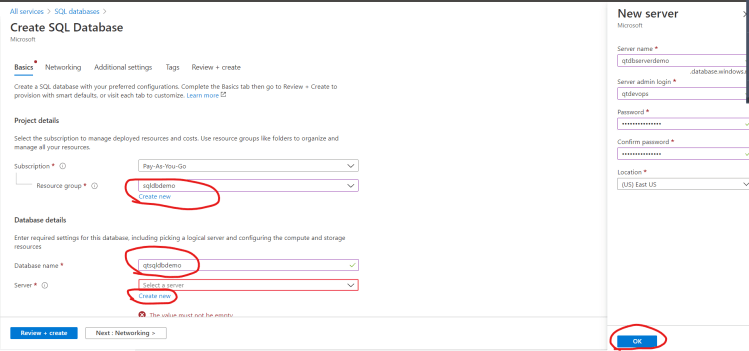

• Lets just see how easy or difficult creating an azure sql database

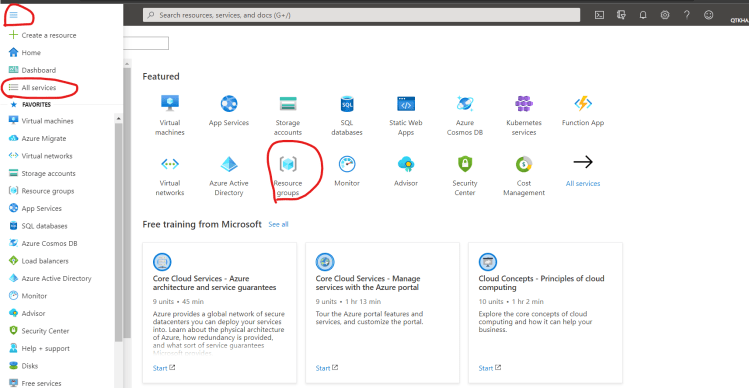

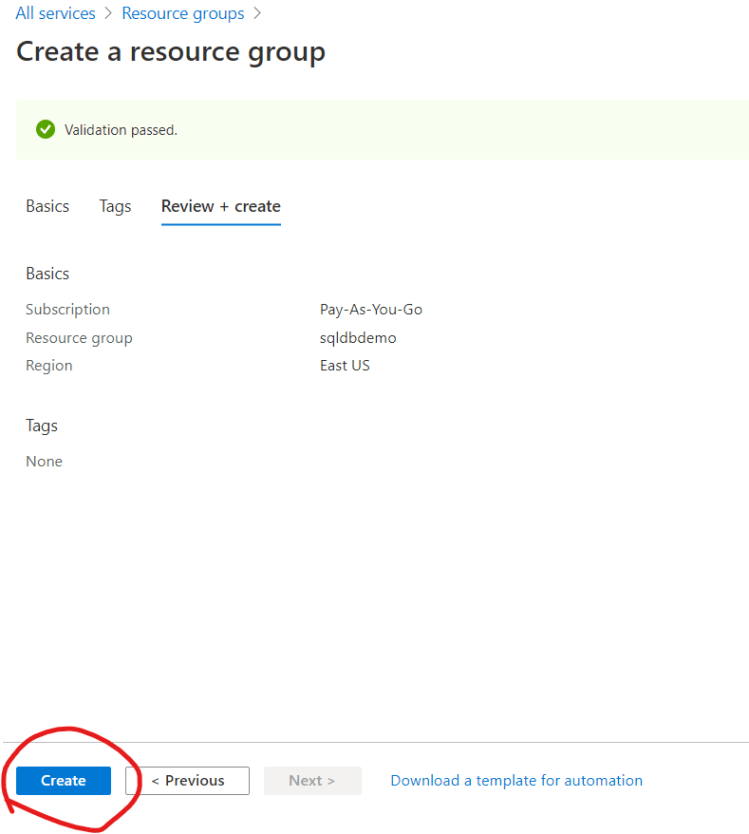

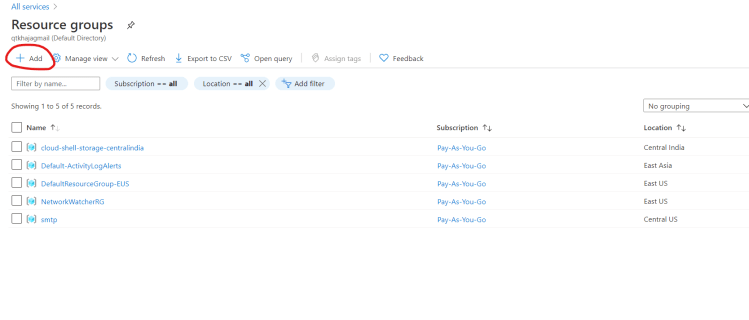

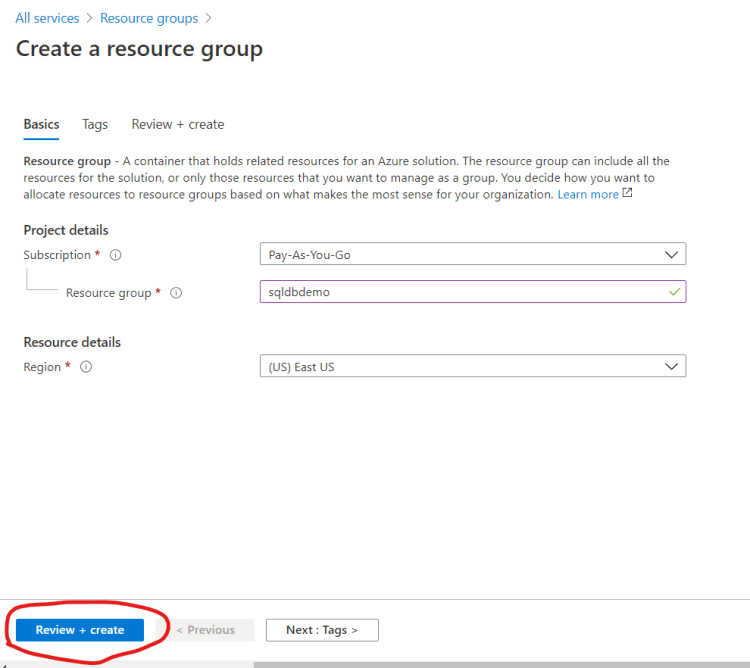

  • Create a resource group

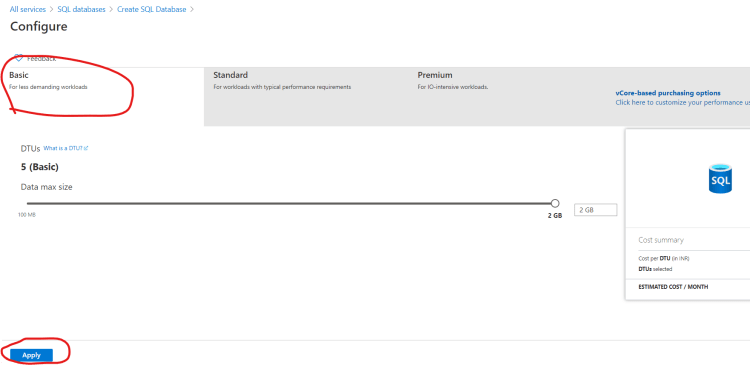

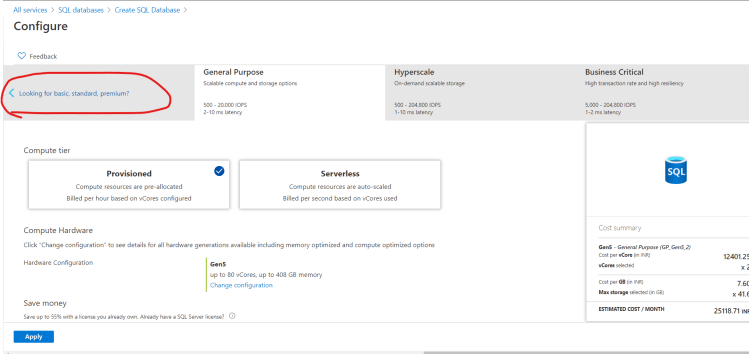

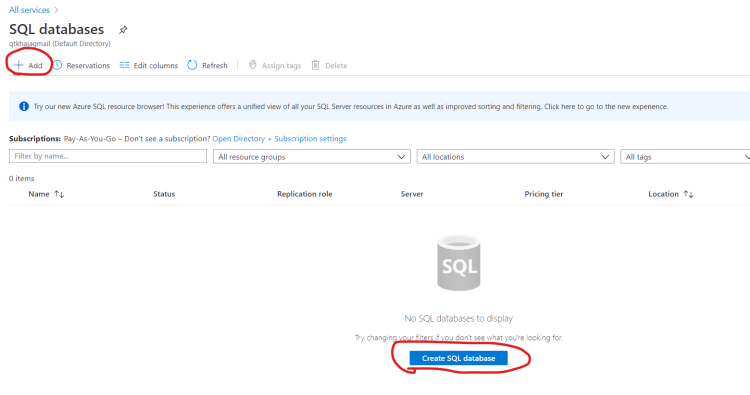

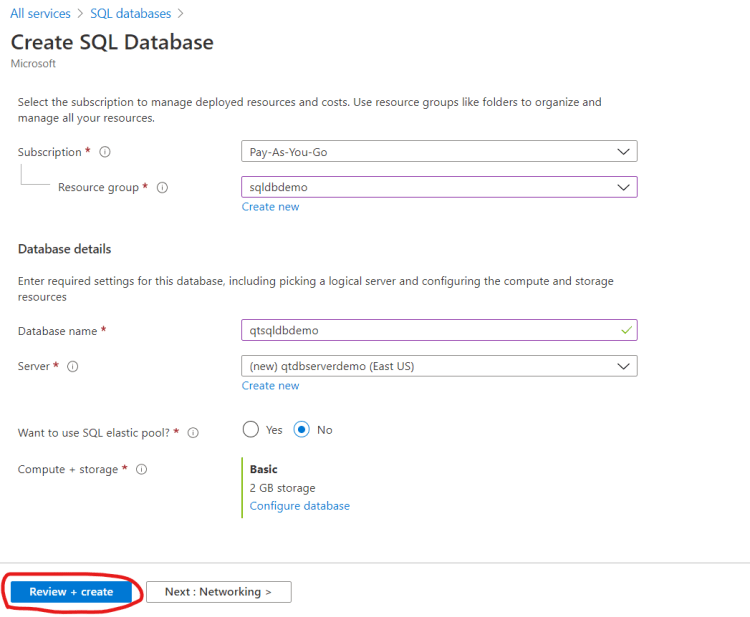

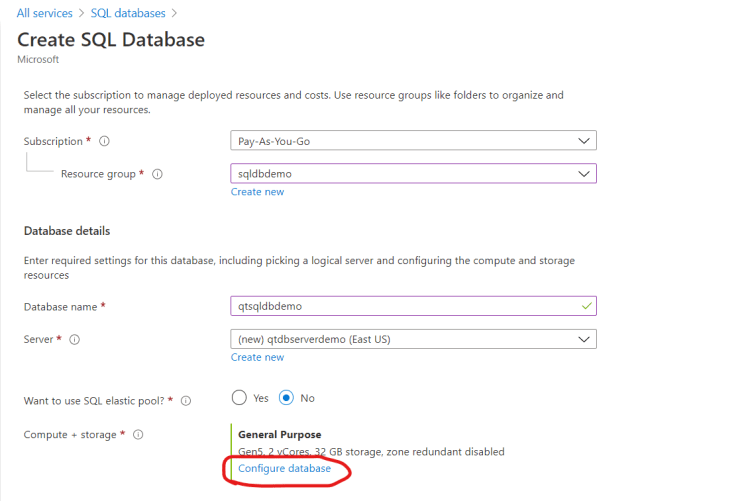

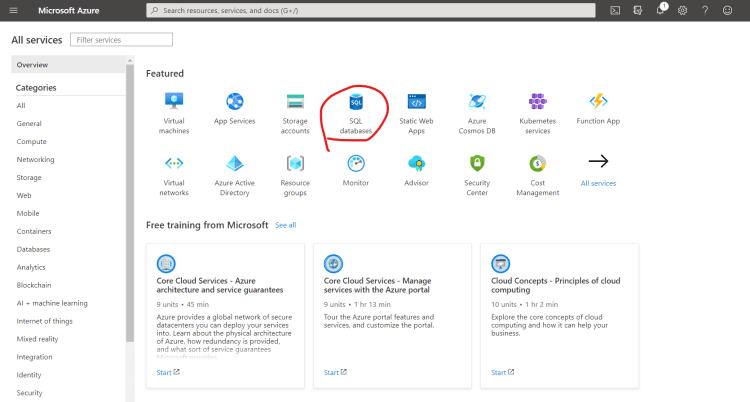

  • Now Select SQL Database from all services

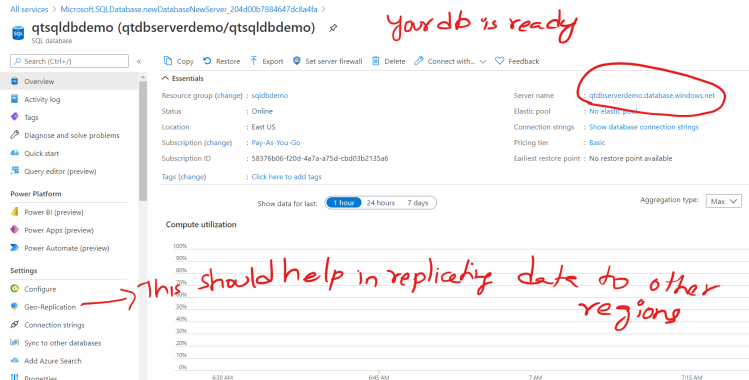

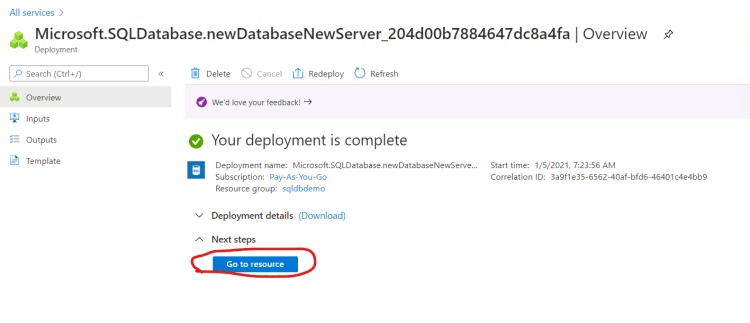

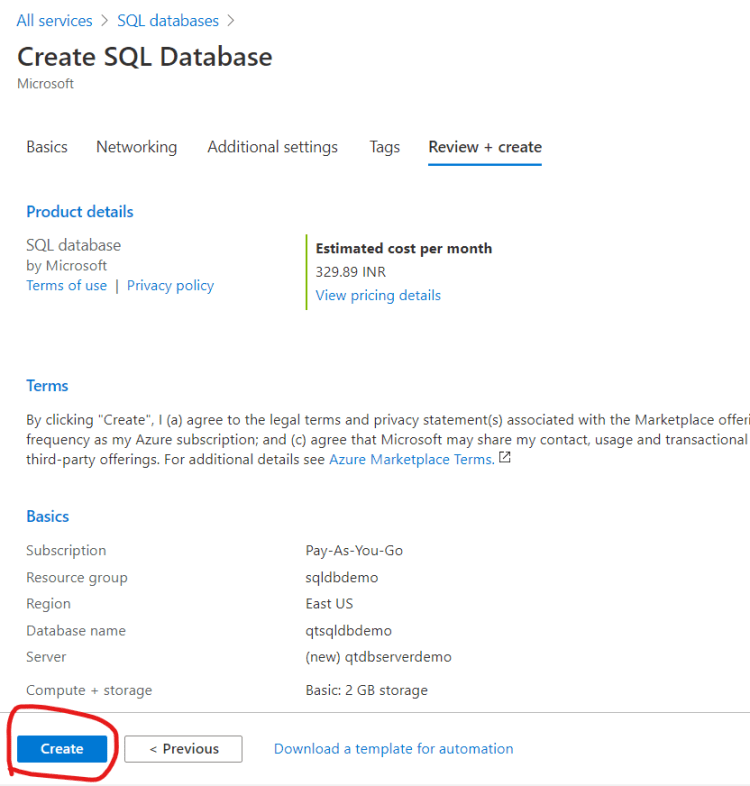

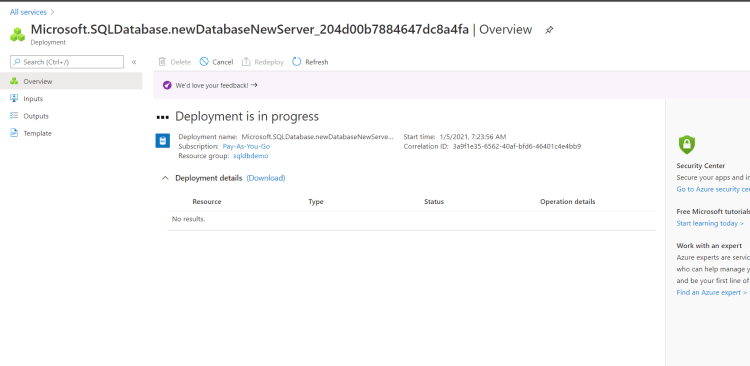

  • Database will be created in few minutes
